The Homeowner Essential Guide to Angle Stops Plumbing Maintenance

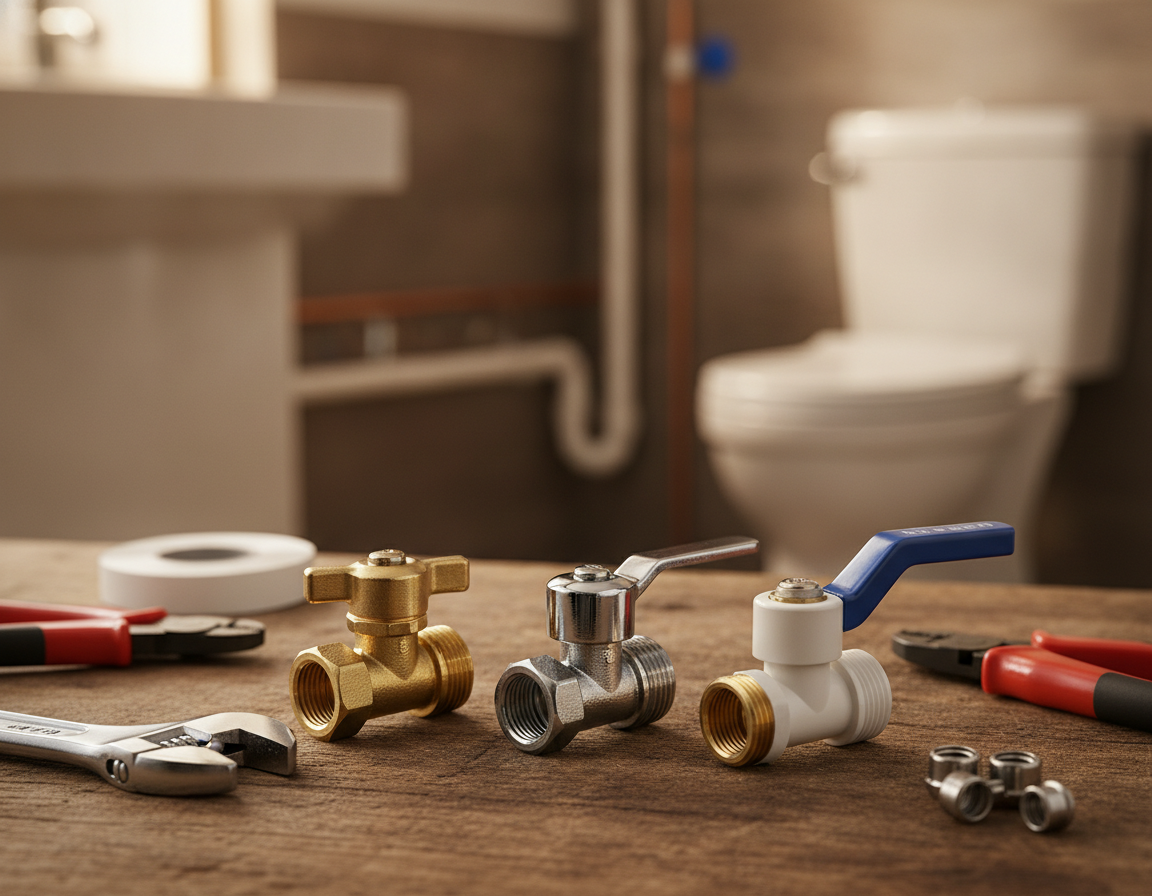

An angle stop is a compact, L-shaped shutoff valve where a water line meets a fixture. These valves are commonly located beneath sinks, behind toilets, and near appliance hookups. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. That means maintenance jobs can be completed with less disruption.
Plumbing Angle Stops
In many homes, angle stops measure about 3–6 inches and redirect water at a 90-degree angle toward the fixture. Today’s installations often use quarter-turn, ball-style Angle Stop Valve models. They are easier to operate and commonly provide longer service life. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.
Key Takeaways
- Plumbing Angle Stops let you shut off water to one fixture without touching the house main.
- Angle Stops Plumbing are usually found beneath sinks, behind toilets, and near fixtures where quick access matters.
- Most Angle Stop Valve units are compact, often 3–6 inches tall, and redirect water at a right angle.
- Quarter-turn designs are now preferred for reliability and faster shutoff.
- Replace valves that leak, corrode, or become difficult to operate to avoid water damage.
Understanding An Angle Stop And Why It Matters
An angle stop is a fixture-level shutoff valve placed where the supply line connects to a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and building inspectors rely on it to keep repairs quick and contained.
Definition And Simple Explanation
An angle stop is a 90-degree valve placed at the fixture supply. Angle Stop Valves come in several styles, including older multi-turn stem designs and newer quarter-turn ball designs. The Plumbing Angle Stop fits neatly under sinks and behind toilets while saving space.
Where Home Angle Stops Are Usually Installed
Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They are usually positioned near the rear of the cabinet where the water line comes through. Toilet stops mount on the wall behind the tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.
Practical Benefits For Homeowners
One main benefit of an Angle Valve For Sink is isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This keeps small leaks from turning into major water damage and limits disruption during repairs.
Convenience is another key benefit. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Periodic exercising of the valve keeps it operable. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.
How An Angle Stop Differs From An Angle Seat Valve
Residential angle stops are made for fixture-level potable water service. They are designed for sinks, toilets, and common appliances. An industrial Angle Seat Valve is a different type of valve. It is built for higher-pressure, higher-temperature, or corrosive applications in steam, chemical, and HVAC systems. Angle seat valves use pistons and durable metal seats for tough service, while an Angle Stop is a simpler fixture-level shutoff for residential plumbing.
Angle Stop Types And How To Choose One
Choosing the right angle stop for a home project means considering material, operation, connection type, and special features. The following overview helps homeowners and plumbers choose Plumbing Angle Stops that are durable.
Materials
Brass is the standard material for Angle Stops. Because it resists corrosion and may last 10–20 years, brass is a strong choice for Quarter-Turn Angle Stops. Stainless steel bodies are best for humid basements, coastal areas, and outdoor hose bibs to prevent rust. Plastic-bodied stops are cheaper, but they are typically less durable and can degrade in hot-water service. Always choose a Lead-Free Angle Stop for potable water in the United States to meet federal and state standards.
How Angle Stops Operate
Quarter-turn valves typically use a ball or disc mechanism and operate with one 90-degree turn. They offer easy operation and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They can offer finer flow control, but older units are more likely to leak.
Common Connection Styles
Compression Angle Stop fittings join with a nut and ferrule and suit copper or CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop connections are soldered to create a slim, permanent joint where torch work is safe and allowed. FIP-threaded valves attach to male adapters and usually require PTFE tape or pipe-thread sealant. Push-Fit Angle Stop models, including SharkBite-style options, can slide onto copper, CPVC, or PEX without special tools. Push-fit designs are handy for DIY jobs and cramped spaces, while Compression Angle Stop fittings are common where future removal or rework may be needed.
Useful Special Features
Some Angle Stop Valve designs include a built-in Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. For coastal or humid environments, choose a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems. Lead-Free Angle Stop markings on the body confirm potable-water compliance. Select a model that matches your pipe type and service expectations to avoid premature failure.
Plumbing Angle Stops
Plumbing angle stops manage fixture water flow using a compact right-angle layout. The choice of size and style affects both function and code compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
Common Valve Sizes And How To Read Markings
In homes, inlet fittings are usually 1/2 inch nominal, while fixture outlets are often 3/8 inch compression. Valve labels may show a format like 1/2 x 3/8 or 1/2” MIP x 3/8” OD. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some valves are marked 3/8 COMP to indicate a compression outlet. Before buying, confirm that the inlet matches your supply piping, whether it is 1/2 FIP, 1/2 MIP, 1/2 sweat, or another style.
Typical Placement In The Home
Angle stops are usually installed under kitchen sinks, beneath bathroom vanities, and behind toilets. They are also used for appliances such as water heaters, dishwashers, ice makers, and washing machines. Under-sink stops usually sit at the back of cabinets, while toilet stops remain visible behind the tank.
Lead-Free Code Notes For Drinking Water
In the United States, valves used on drinking-water lines must comply with lead-free requirements for wetted surfaces. Choose a Lead-Free Angle Stop that has clear markings, documentation, or certification details. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.
Industry Trends And Recommended Standard
Modern Angle Stops commonly feature quarter-turn ball-style operation. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Many plumbers standardize on brass 1/2 x 3/8 angle stops for sinks and toilets because they simplify stocking, replacement, and maintenance. Models with arrestors and other potable-water protection features are increasingly common in new installations.
Quick Checklist For Choosing Angle Stops
- Confirm Valve Markings for inlet type and outlet size before purchase.
- Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
- Specify a Lead-Free Angle Stop when the line serves potable water.
- Standardize on Quarter-Turn Angle Stop 1/2 x 3/8 units for easier repair and reliability.
Installing And Replacing Angle Stops With Tools Steps And Best Practices
When tackling a plumbing angle stop, it is important to know when to shut the main water supply. The main usually needs to be closed only when the existing stop is unable to close fully. For many under-sink jobs, the line can be isolated at the fixture valve itself. Always relieve pressure by opening a downstream faucet, and keep towels plus a bucket nearby.
Before starting, gather all needed tools and supplies. Common tools include an adjustable wrench, a backup wrench, a tube cutter, and a deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit installs, bring the manufacturer’s push-fit angle stop, a PEX stiffener, and spare ferrules and nuts for compression work. Penetrating oil can help with stuck fittings, while a heat shield is useful around sweat connections.
Installation Checklist:
- Adjustable wrench and backup wrench
- Clean-cutting and deburring tools
- PTFE tape and marker
- Push-fit stop with PEX stiffener
- Extra ferrules, nuts, oil, towels, and cleanup supplies
Each connection type requires its own installation method. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Start the nut by hand, then tighten another 1/4–1/2 turn with a wrench. Use a backup wrench on the valve body or outlet so the stub-out does not twist.
For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth, then push the valve straight onto the pipe until it reaches the mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings can work with copper, CPVC, and PEX, but PEX may require a stiffener depending on the product.
Sweat angle stop joints require careful handling. Remove or protect seals, clean and flux the pipe and valve cup, heat evenly, and apply solder properly. Once the joint cools, wipe away flux residue and inspect the solder bead. Use a heat shield or remove seals to prevent damage during sweating.
For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.
Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture in stages rather than all at once. Use a dry towel or tissue to reveal small weeps around fittings. Operate the valve, let pressure stabilize, and inspect again for slow leaks.
Several common mistakes can cause leaks or early valve failure. Over-tightened compression nuts may deform ferrules and create leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Avoid sweating valves without protecting seals or removing internal parts. Avoid twisting push-fit valves during insertion and always follow the manufacturer’s insertion-depth marks.
Typical problems include frozen or leaking stops that require main shutoff, incorrectly applied PTFE tape on threaded joints, and outlet nuts tightened without a backup wrench. Keep spare parts nearby and follow torque guidance for each valve type to reduce callbacks.
Angle Stop Problems And Quick Repairs
Homeowners often encounter small leaks and frozen handles with angle stops. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.
Leaking At The Stem Or Handle
Stem seepage in older multi-turn valves often comes from a loose packing nut. A careful 1/8-turn tightening with an adjustable wrench may stop the leak. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.
Stuck Valves
Mineral Buildup, corrosion, and rust commonly cause stuck angle stops. Applying a penetrating oil such as WD-40 and allowing it to sit for about ten minutes can sometimes loosen the valve. A gentle back-and-forth motion may help break the handle free. If the valve stays frozen or the handle feels brittle, replacement is safer than forcing it and risking a flood.
Compression Joint Weeps
A persistent leak from a compression joint usually indicates a misaligned ferrule or damaged pipe end. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is damaged or worn, cut back the pipe, fit a new ferrule, and tighten carefully without over-compressing it.
When Replacement Makes Sense
If a home has repeated leaks, frozen handles, visible corrosion, or valves older than about ten years, modern angle stops are worth considering. A Quarter-Turn Upgrade to a ball-type stop improves shutoff speed, resists Mineral Buildup, and increases emergency reliability.
Quick Checklist
- For stem drips, tighten the packing nut slightly and recheck.
- For stuck valves, apply Penetrating Oil and use gentle back-and-forth motion.
- Reseat the ferrule or cut back the pipe for compression leaks.
- Upgrade to quarter-turn stops when valves freeze or leak repeatedly.
Regularly exercising angle stops and checking for corrosion helps identify issues early. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.
Summary
The Plumbing Angle Stops Guide highlights the importance of these small but critical components. They let homeowners shut off one fixture without disrupting water to the whole house. Choosing the right material, operation style, and connection type makes repairs easier. It can also lower the chance of water damage during fixture upgrades and maintenance.
For strong everyday performance, many professionals prefer lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors are also useful where water hammer is a concern. Homeowners should test valves regularly and replace faulty Plumbing Angle Stops. Parts may cost $6 to $60, while professional installation can range from $75 to $200 depending on location and complexity.
When installation feels uncertain, hiring a licensed plumber is the safer option. A qualified plumber can check code requirements, complete the work properly, and often provide warranty-backed service. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
